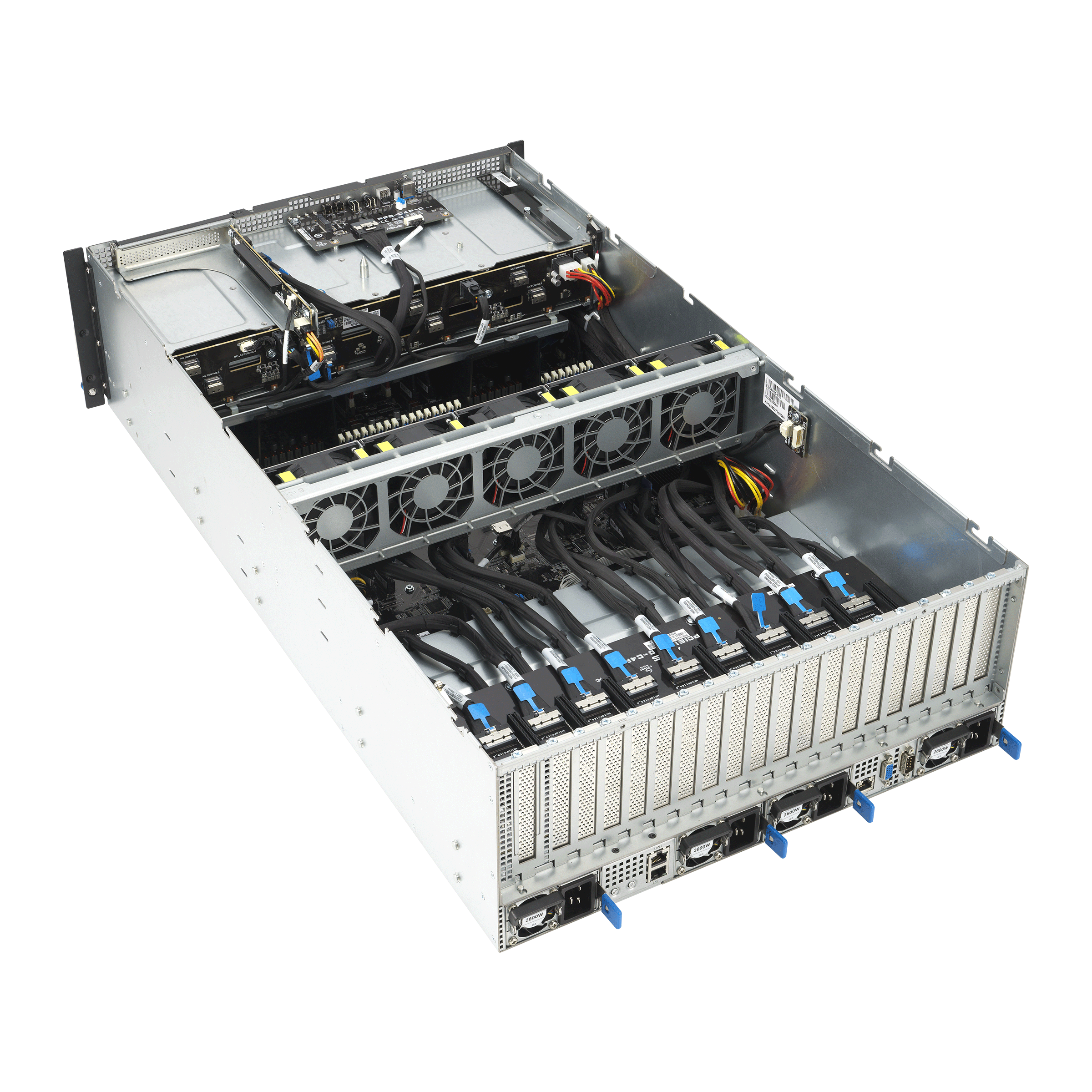

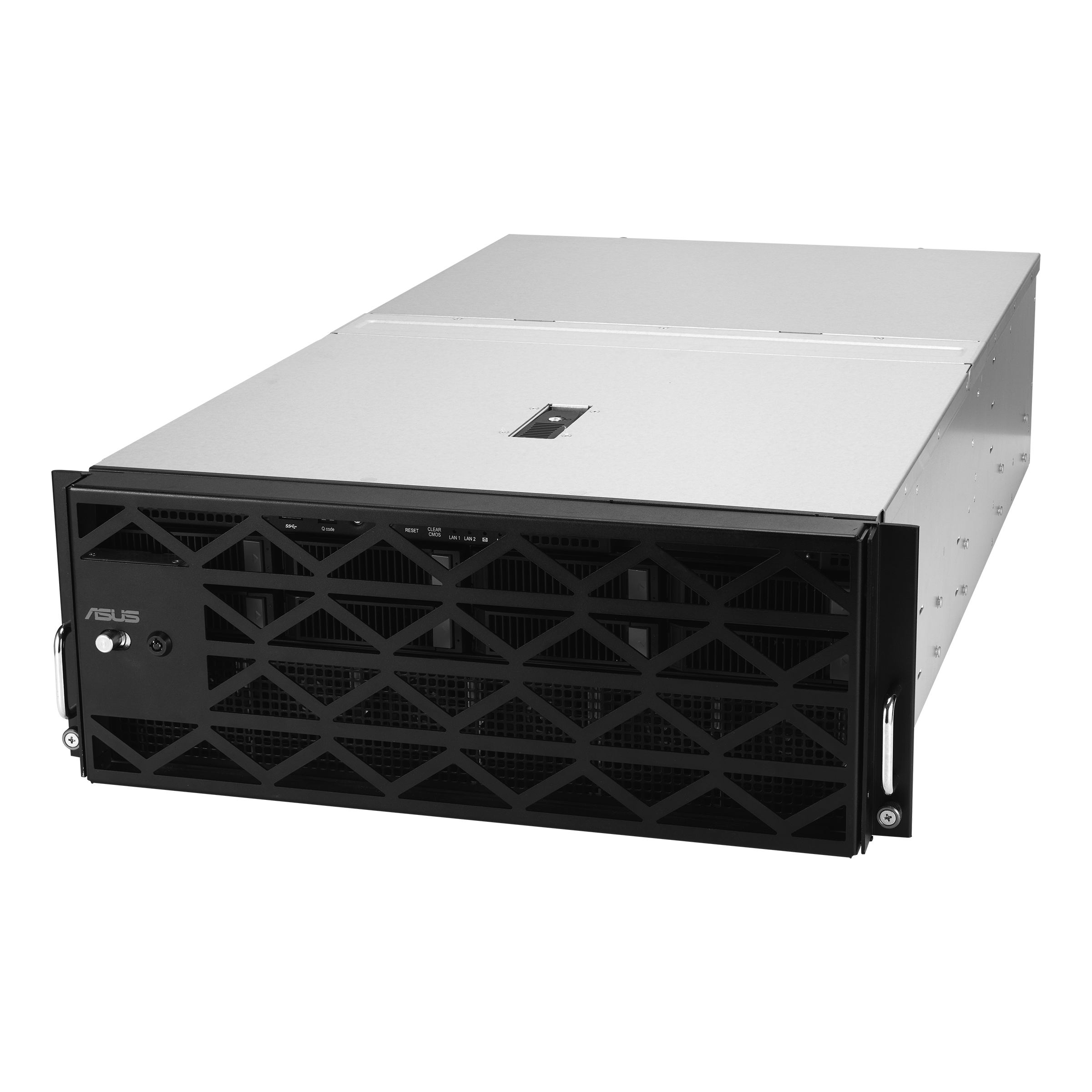

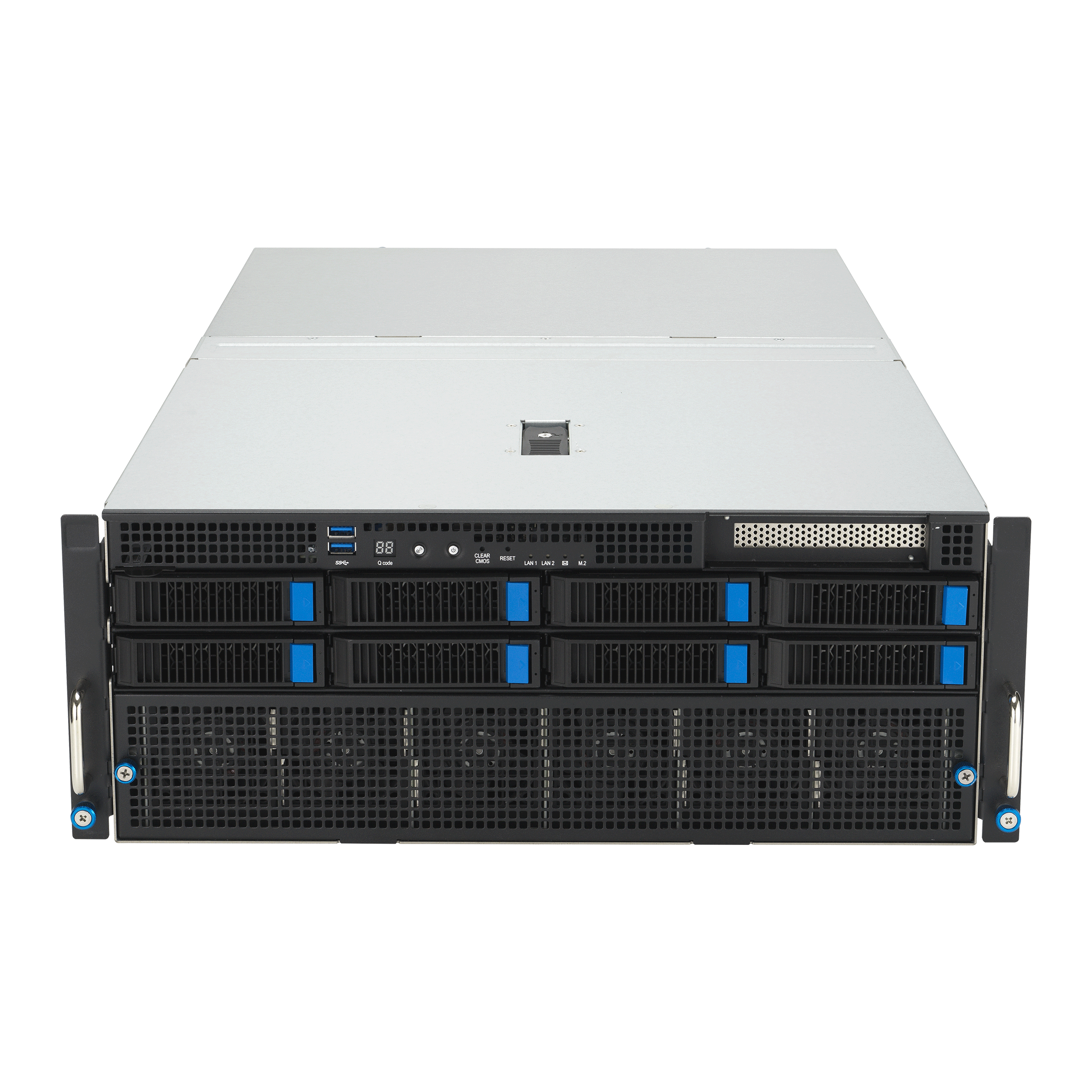

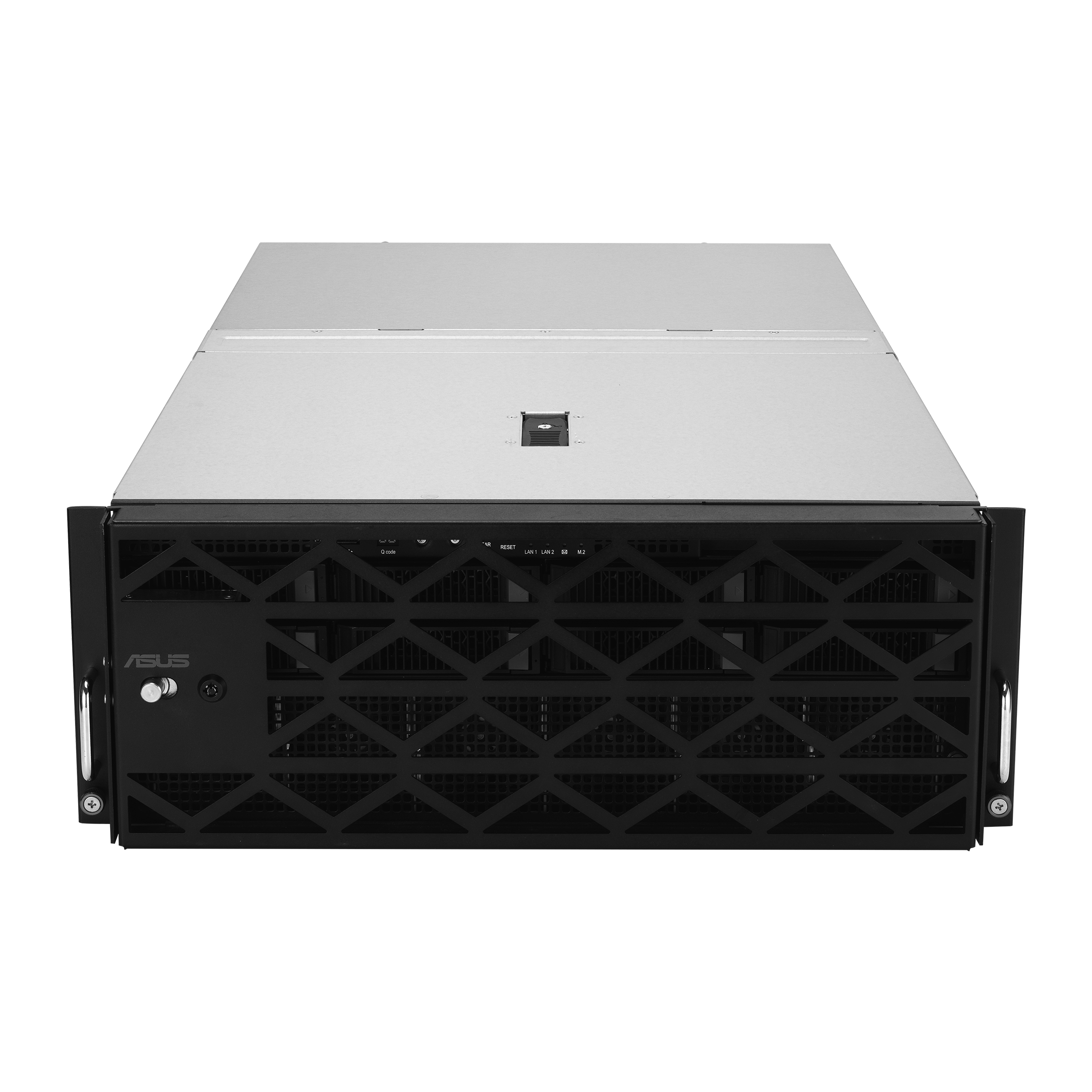

4U 双插槽 GPU 服务器采用第4代英特尔至强可扩展处理器，支持8个双插槽 GPU, PCIe 5.0 Switch 解决方案, 液冷散热解决方案, 支持 32个 DIMM, 13个 PCIe 5.0, 8个 NVMe, 4个 3000W Titanium 电源, OCP 3.0 和 ASMB11-iKVM

  • 强大性能: 采用第4代英特尔至强可扩展处理器专为强大的数据基础设施而设计，从云端到网络，再到智能边缘
  • 助力加速 AI 和 HPC 工作负载: 高达8个双插槽主动式和被动式GPU，支持 NVIDIA NVLink® bridge, 和 NVIDIA Bluefield DPU 以提升性能
  • PCIe 5.0 Switch 解决方案: 实现机架内主机与端点之间的通信并提供更高的 PCIe 交换性能
  • 高能效系统设计: 优化的散热设计，具备独立的 CPU 和 GPU 风道，支持高达4个 3000W Titanium 冗余电源提供不间断的运行保障
  • 全面的散热解决方案: 专为液冷散热和基于 CPU TDP 风冷散热而设计，轻松应对多种工作负载
  • 出色的存储和扩展设计: 前面板共有 8 个组合 Tri-Mode NVMe/SATA/SAS 驱动器和 13个 PCIe 5.0 插槽，以提供更高的带宽和系统升级
  • 灵活的网络模块设计: 选购 OCP 3.0 模块及后面板 PCIe 5.0 插槽，实现更快的连接性能
  • 增强的 IT 基础设施管理: ASUS ASMB11-iKVM 远程控制可搭配 ASPEED AST2600, ASUS Control Center IT 管理软件和硬件级信任根解決方案

规格参数

处理器 / 系统总线

2 x Socket

Intel® Xeon® Processor Scalable Family (Up to 350W)
内存 Total Slots:

32 (8 channel per CPU, 16 DIMM per CPU)

Capacity:

Maximum up to 3TB per CPU socket

Memory Type:

DDR5 4800/4400 RDIMM/ 3DS RDIMM (2DIMM per Channel)

Memory Size:

64GB, 32GB, 16GB RDIMM

256GB, 128GB RDIMM 3DS
扩展槽

8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards

SKU-1 (5PCIe + 4NVMe)

Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards

Rear: 4 x PCIe slot (Gen5 x16 link) for NIC

SKU-2 (4PCIe + 1OCP3.0)

Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards

Rear: 3 x PCIe slot (Gen5 x16 link) for NIC

1 x OCP3.0 NIC socket (Gen5 x16 link)
存储功能（视出货而定）

Optional Kits:

-Broadcom MegaRAID 9560-16i

-Broadcom MegaRAID 9540-8i

-ASUS PIKE II 3008 8-port HBA Card

-ASUS PIKE II 3108 8-port HW RAID Card
盘位

8 x 3.5" Front Hot-swap Storage Bays

(Backplane supports up to 8 x NVMe*/SATA/SAS**)

*NVMe support on selected SKUs

**SAS support requires an optional HBA/RAID card


1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
网络(视出货而定)

2 x 10GbE LAN ports (RJ45, X710-AT2)

or 2 x Gigabit LAN ports (RJ45, I350-AM2)

1 x Management Port
支持多显卡

NVIDIA H100 80GB PCIe * 8

NVIDIA A30 24GB * 8

NVIDIA L40 48GB * 8

Nvidia RTX 6000 ADA 48GB * 8

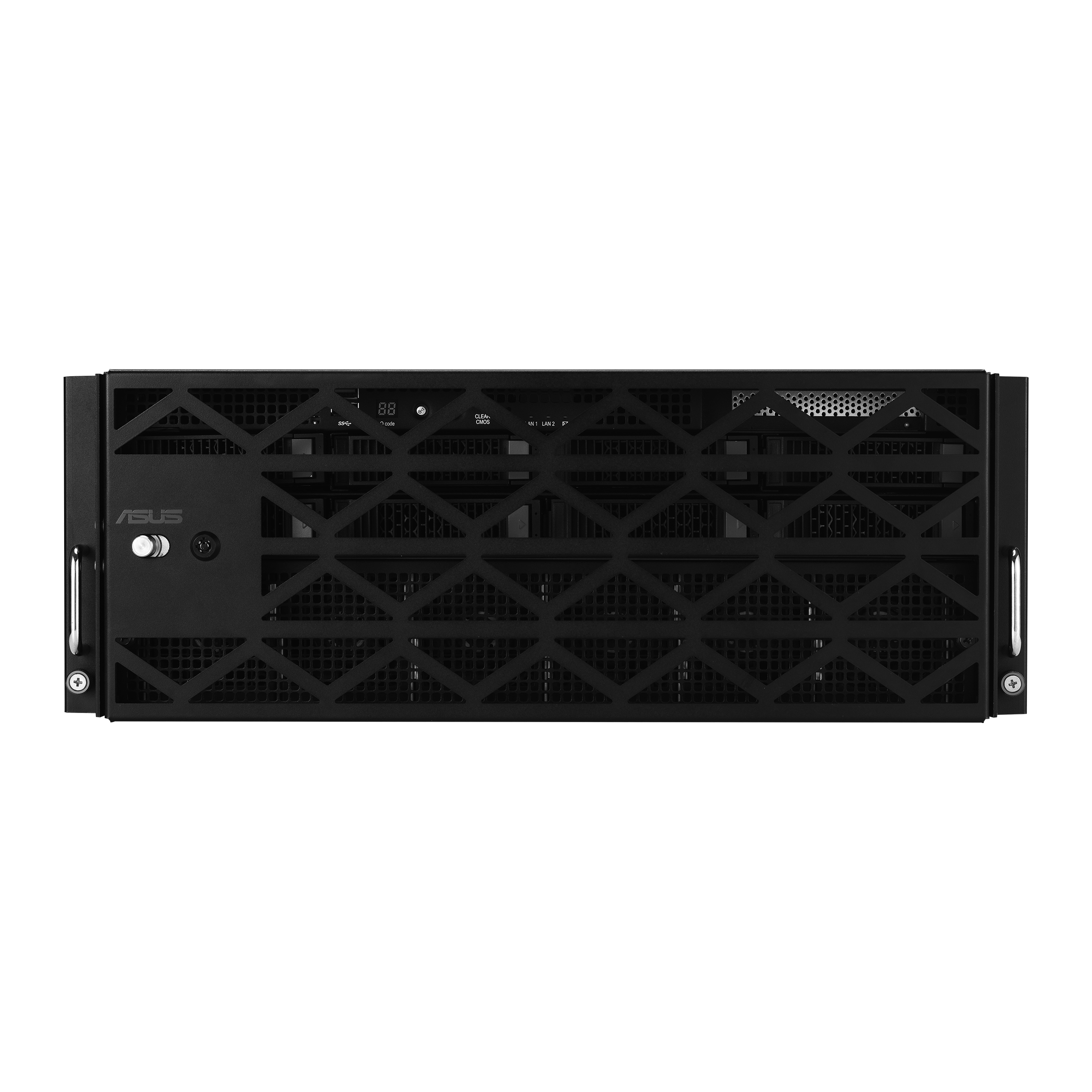

前置 I/O 接口

2 x USB 3.2 Gen1 ports

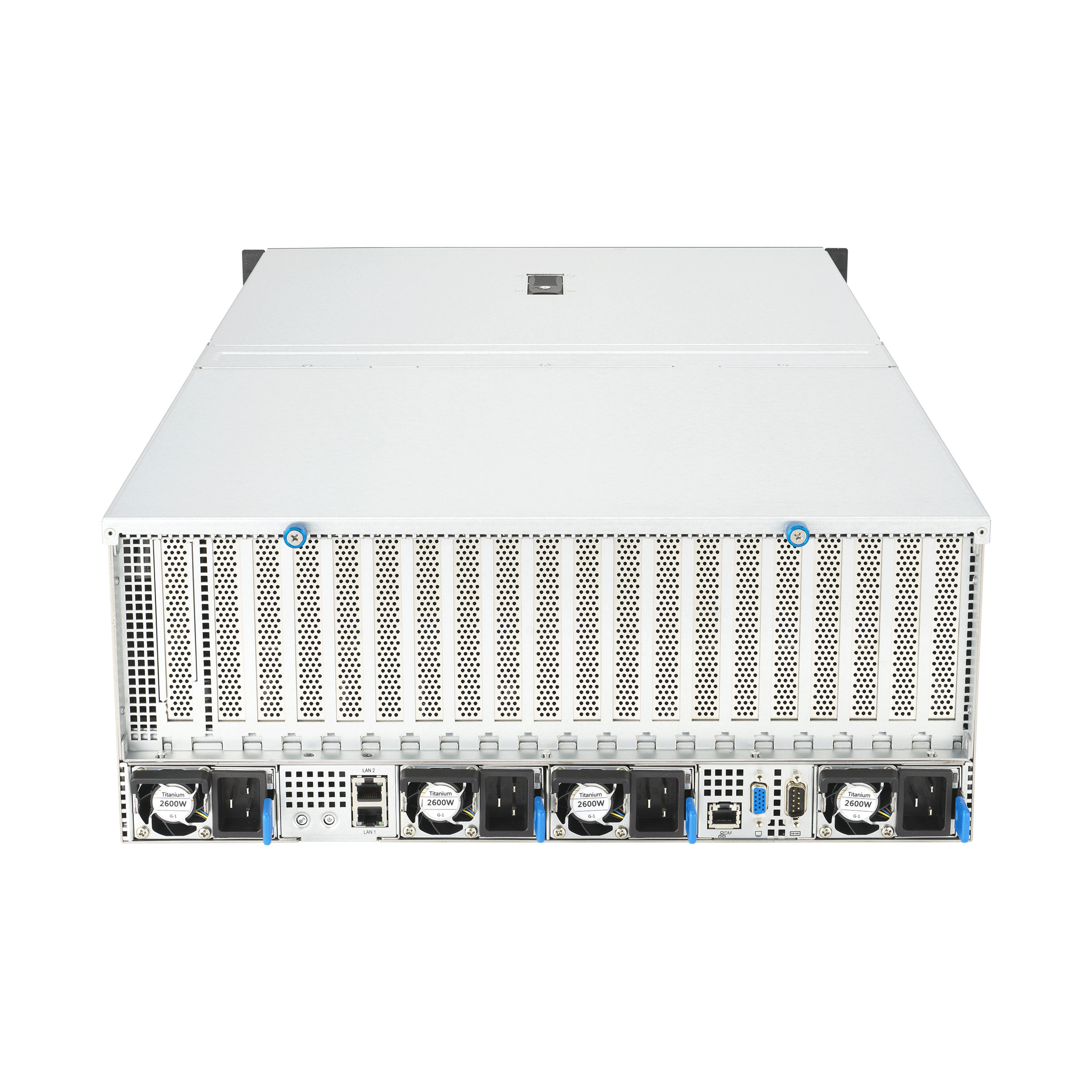

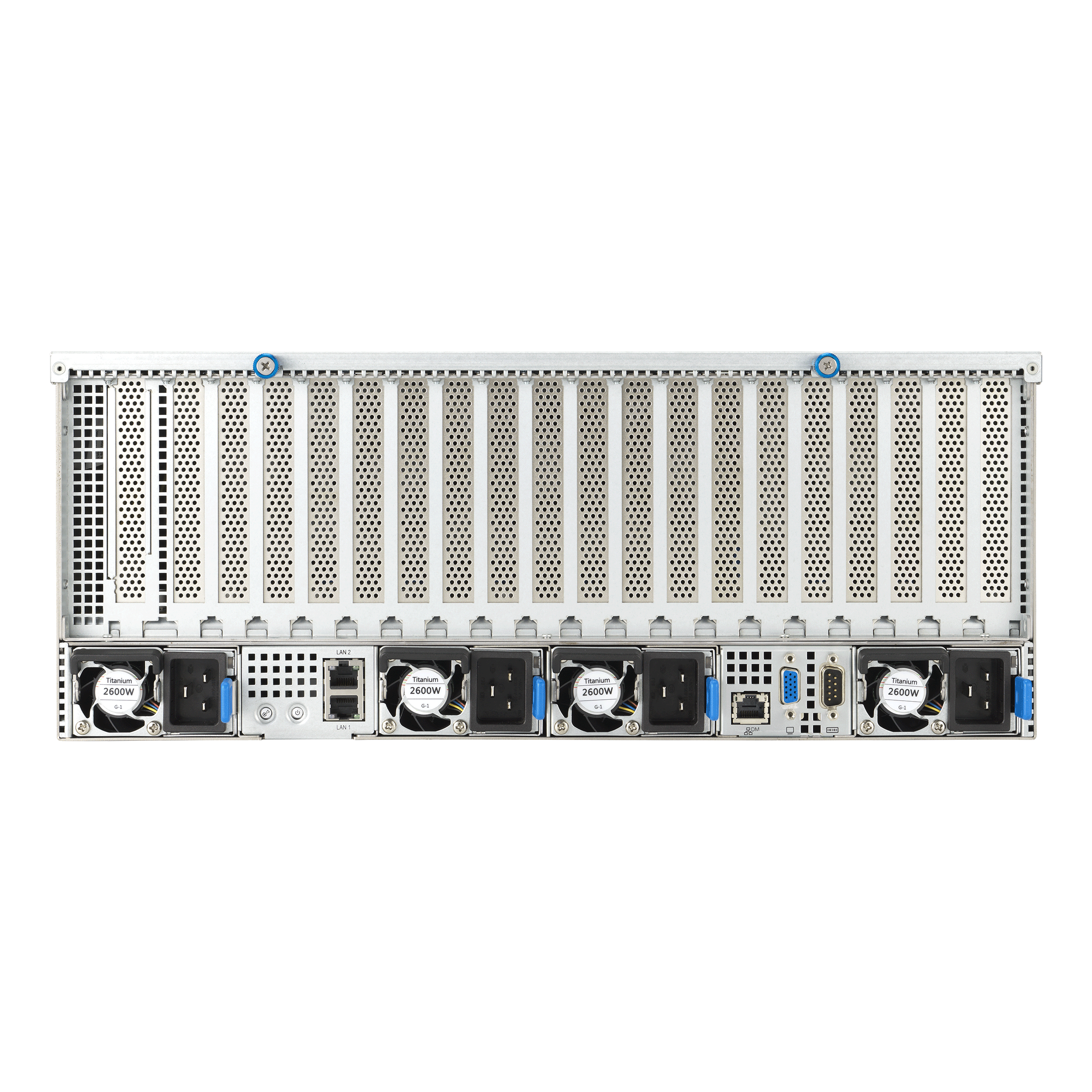

背部 I/O 接口

1 x VGA port

1 x COM port

2 x 10GbE/1GbE LAN ports (RJ45, build for order)

1 x Management port (RJ45)
开关/LED Front :

1 x Power Button w/LED

1 x Location Button w/LED

1 x Message LED

1 x Q-Code/Port 80 LED

1 x Clear CMOS Switch

1 x Reset Switch

1 x M.2 LED

Rear :

1 x Power Button w/LED

1 x Location Button w/LED
支持操作系统

Ubuntu 22.04 LTS
管理功能

ASUS Control Center Enterprise (in-band)

ASMB11-iKVM for (out-of-band/BMC AST2600)
合规性认证

BSMI, CB, CE, FCC(Class A), RCM
外形尺寸

800mm x 440mm x 174.5mm

4U
重量

Net Weight: 27 Kg.

Gross Weight : 52 Kg.
电源

2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply

2+1 Redundant 3000W 80 PLUS Titanium Power Supply

Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
环境

Operation temperature: 10℃ ~ 35℃

Non operation temperature: -40℃ ~ 70℃

Non operation humidity: 20% ~ 90% ( Non condensing)

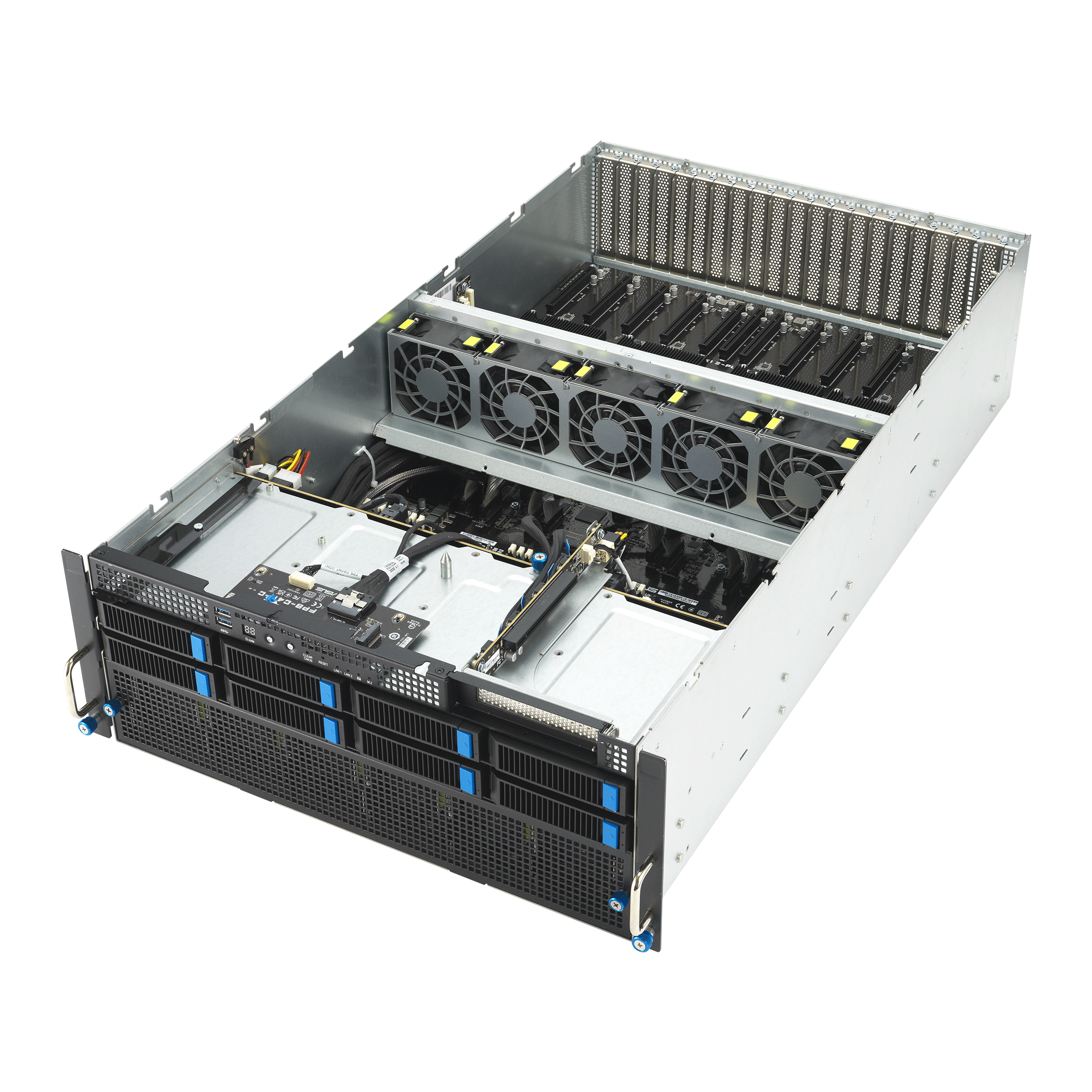

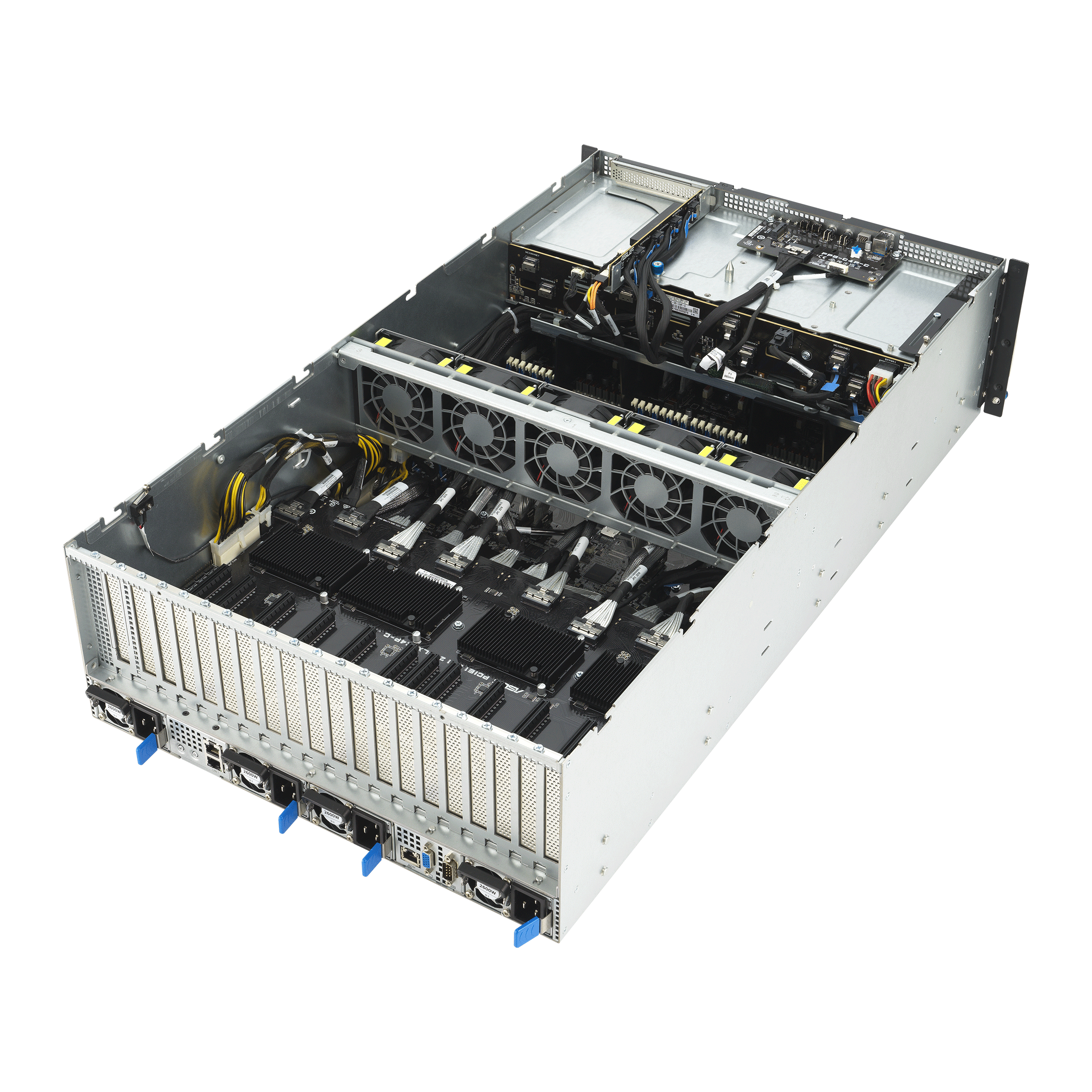

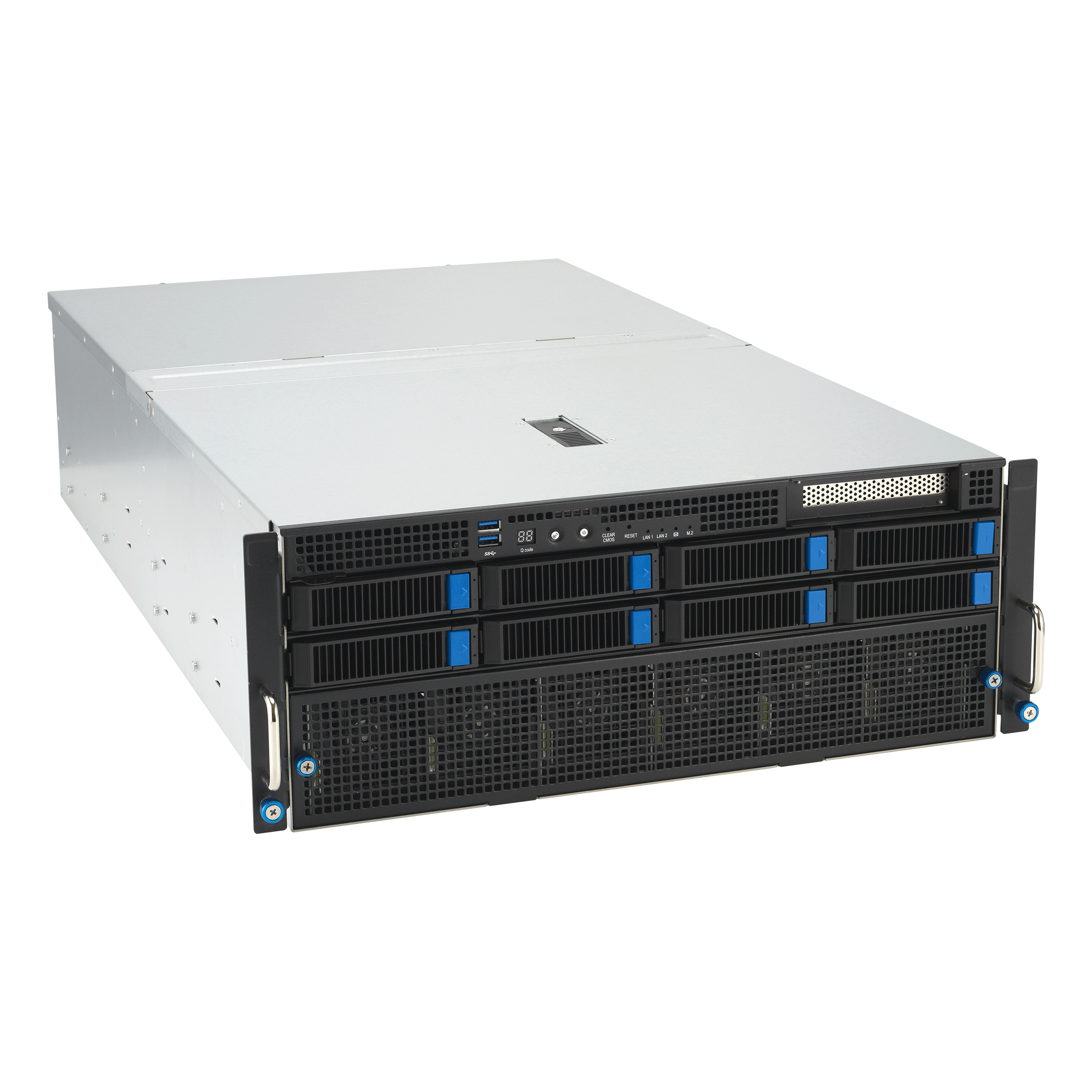

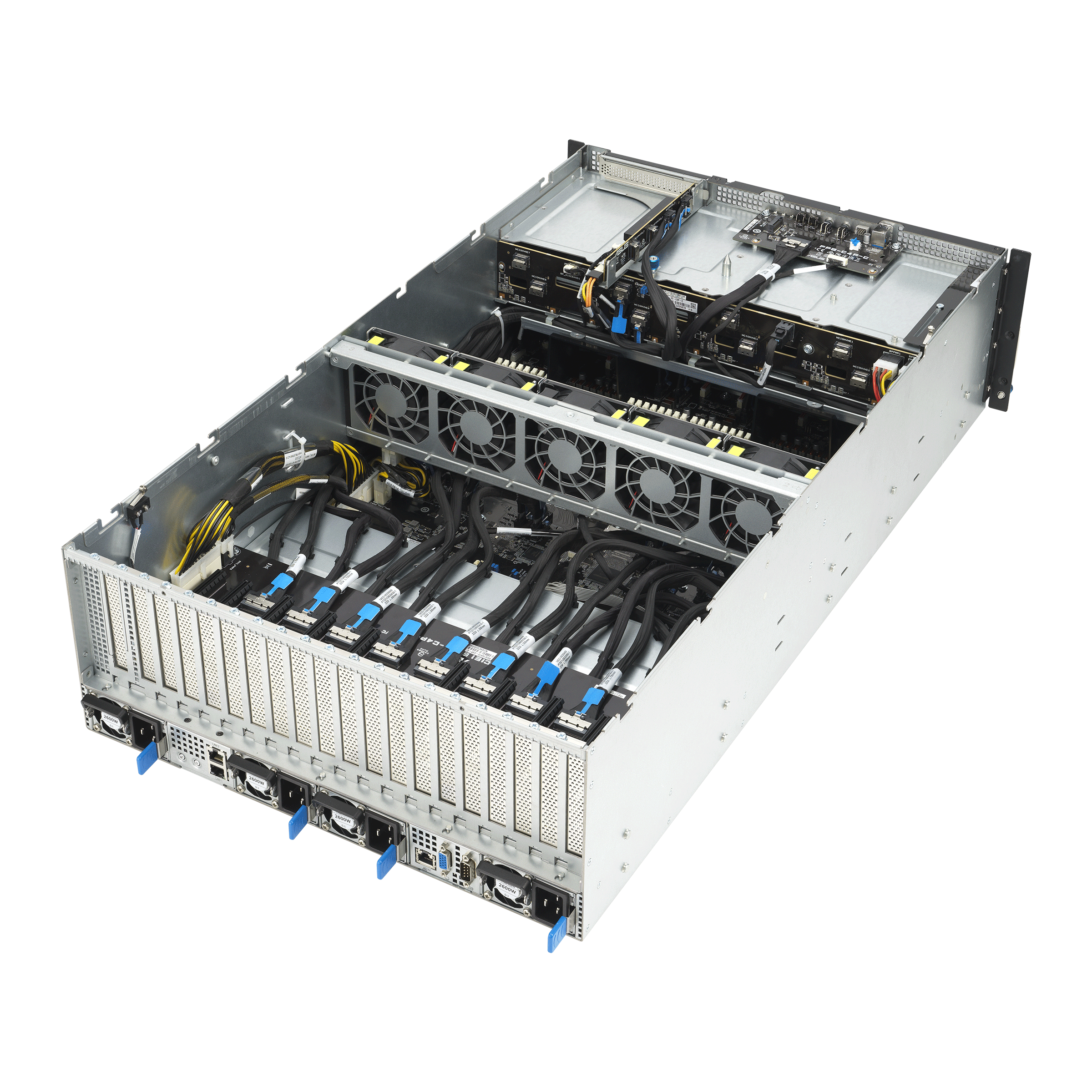

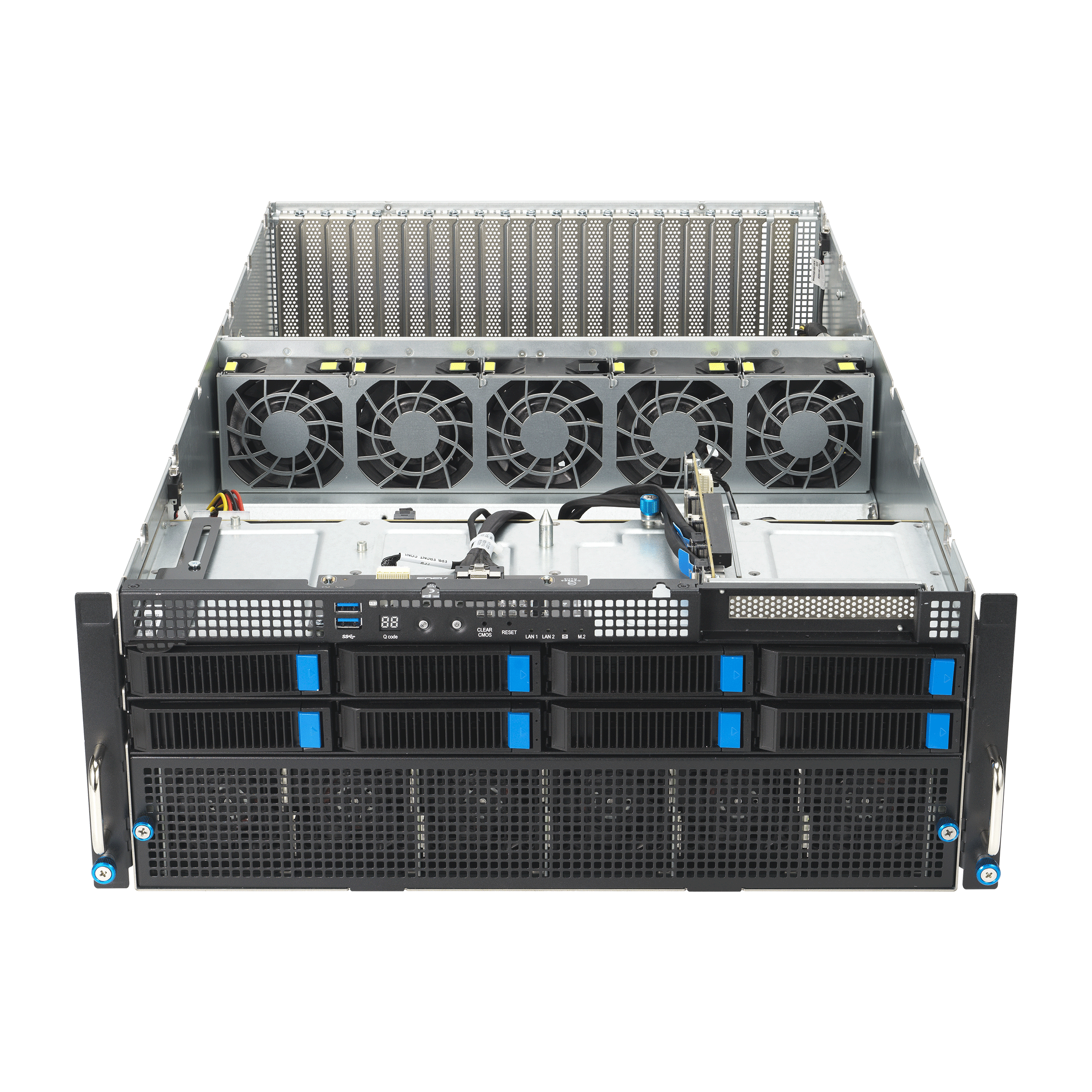

4U 双插槽 GPU 服务器采用第4代英特尔至强可扩展处理器，支持8个双插槽 GPU, 液冷散热解决方案, 支持 32个 DIMM, 11个 PCIe 5.0, 双NVMe, 4个 3000W Titanium 电源, OCP 3.0 和 ASMB11-iKVM

  • 强大性能: 采用第4代英特尔至强可扩展处理器专为强大的数据基础设施而设计，从云端到网络，再到智能边缘
  • 助力加速 AI 和 HPC 工作负载: 高达8个双插槽主动式和被动式GPU，支持 NVIDIA NVLink® bridge, 和 NVIDIA Bluefield DPU 以提升性能
  • 高能效系统设计: 优化的散热设计，具备独立的 CPU 和 GPU 风道，支持高达4个 3000W Titanium 冗余电源提供不间断的运行保障
  • 全面的散热解决方案: 专为液冷散热和基于 CPU TDP 风冷散热而设计，轻松应对多种工作负载
  • 出色的存储和扩展设计: 前面板共有 8 个组合 Tri-Mode NVMe/SATA/SAS 驱动器和11个 PCIe 5.0 插槽，以提供更高的带宽和系统升级
  • 灵活的网络模块设计: 选购 OCP 3.0 模块及后面板 PCIe 5.0 插槽，实现更快的连接性能
  • 增强的 IT 基础设施管理: ASUS ASMB11-iKVM 远程控制可搭配 ASPEED AST2600, ASUS Control Center IT 管理软件和硬件级信任根解決方案

规格参数

处理器 / 系统总线

2 x Socket

Intel® Xeon® Processor Scalable Family (Up to 350W)
内存 Total Slots :

32 (8 channel per CPU, 16 DIMM per CPU)

Capacity :

Maximum up to 3TB per CPU socket

Memory Type :

DDR5 4800/4400 RDIMM/ 3DS RDIMM (2DIMM per Channel)

Memory Size :

64GB, 32GB, 16GB RDIMM

256GB, 128GB RDIMM 3DS
扩展槽

8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards

SKU-1 (3PCIe)

Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards

Rear: 1 x PCIe slot (Gen5 x16 link) for NIC

1 x PCIe slot (Gen5 x8 link) for NIC

SKU-2 (2PCIe + 2NVMe)

Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards

Rear: 1 x PCIe slot (Gen5 x16 link) for NIC

SKU-3 (1PCIe + 1OCP3.0 + 2NVMe)

Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards

Rear: 1 x OCP3.0 NIC socket (Gen5 x16 link)
存储功能（视出货而定） Optional Kits:

-Broadcom MegaRAID 9560-16i

-Broadcom MegaRAID 9540-8i

-ASUS PIKE II 3008 8-port HBA Card

-ASUS PIKE II 3108 8-port HW RAID Card
硬盘位

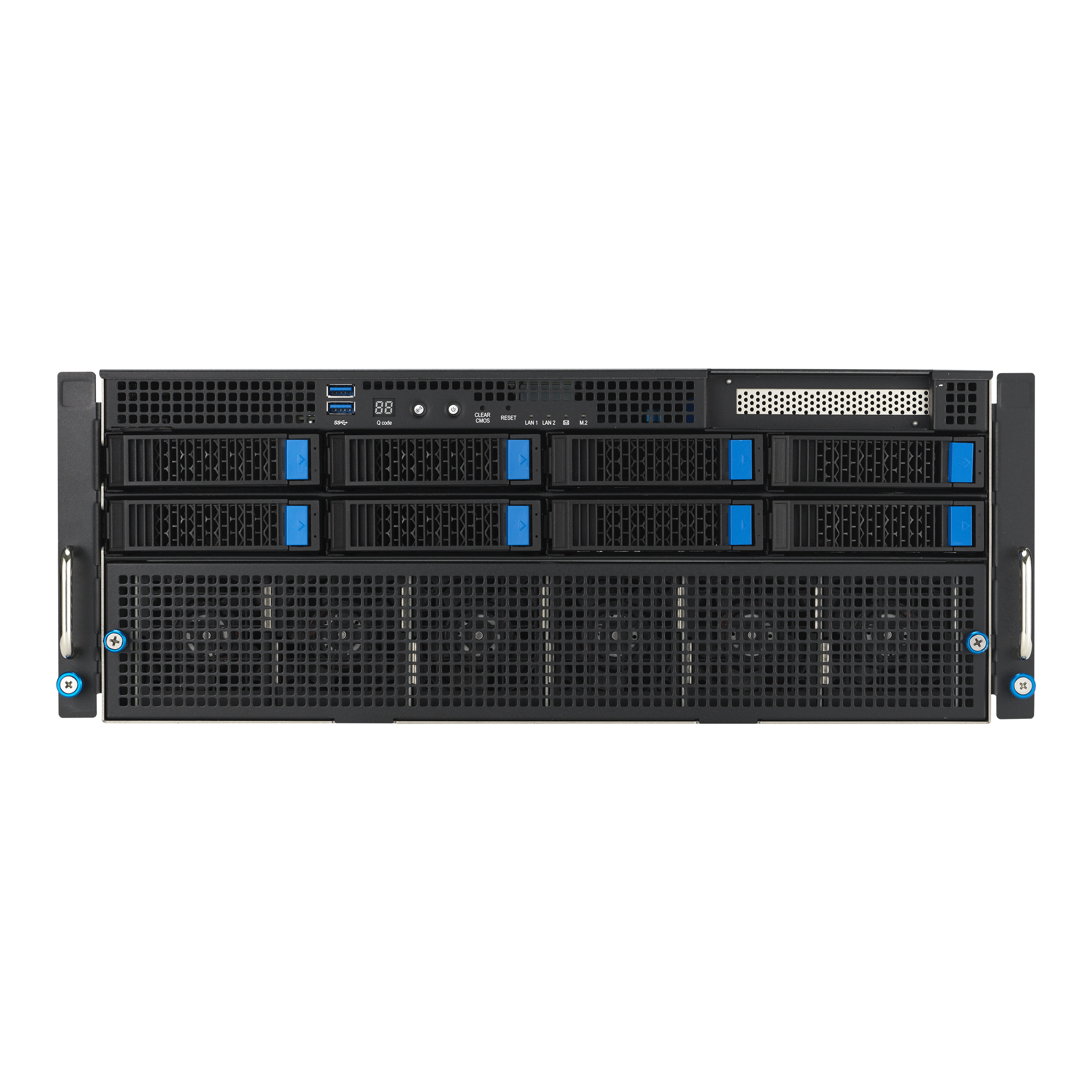

8 x 3.5" Front Hot-swap Storage Bays

(Backplane supports up to 8 x NVMe*/SATA/SAS**)

*NVMe support on selected SKUs

**SAS support requires an optional HBA/RAID card

1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
网络(视出货而定)

2 x 10GbE LAN ports (RJ45, X710-AT2)

or 2 x Gigabit LAN ports (RJ45, I350-AM2)


1 x Management Port
支持多显卡

NVIDIA H100 80GB PCIe * 8

NVIDIA L40 48GB * 8

NVIDIA A30 24GB * 8

Nvidia RTX 6000 ADA 48GB * 8

Nvidia L4 24GB * 8

NVIDIA L40S 48GB * 8
前置 I/O 接口

2 x USB 3.2 Gen1 ports
背部 I/O 接口

1 x VGA port

1 x COM port

2 x 10GbE/1GbE LAN ports (RJ45, build for order)

1 x Management port (RJ45)
开关/LED Front :

1 x Power Button w/LED

1 x Location Button w/LED

1 x Message LED

1 x Q-Code/Port 80 LED

1 x Clear CMOS Switch

1 x Reset Switch

1 x M.2 LED

Rear :

1 x Power Button w/LED

1 x Location Button w/LED
支持操作系统

Ubuntu 22.04 LTS
管理功能

ASUS Control Center Enterprise (in-band)

ASMB11-iKVM for (out-of-band/BMC AST2600)
合规性认证

BSMI, CB, CE, FCC(Class A), RCM
外形尺寸

800mm x 440mm x 174.5 mm

4U
重量

Net Weight: 27 Kg.

Gross Weight : 52 Kg.
电源

2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply

2+1 Redundant 3000W 80 PLUS Titanium Power Supply

Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
环境

Operating temperature: 10°C ~ 35°C

Non operating temperature: -40°C ~ 70°C

Non operating humidity: 20% ~ 90% ( Non condensing)

高密度4U GPU 服务器支持 8 个 GPU

  • 搭载第2代英特尔® Xeon® 可扩展平台
  • 高密度 GPU 服务器搭载混合运算能力
  • ASUS 可调式拓扑专利设计
  • 可扩展设计适合日益成长的工作负载
  • 全方位 IT 基础架构管理解决方案
  • 热插入冗余风扇和专用空气通道提供有效散热
  • 专属 Thermal Radar 技术提高能源效率
  • 简化维护与管理

规格参数

处理器 / 系统总线

2 x Socket P (LGA 3647)

1st and 2nd Gen Xeon® Scalable Processor Family
核心逻辑

Intel® Lewisburg PCH C621
内存 Total Slots :

24 (6-channel per CPU, 12 DIMM per CPU)

Capacity :

Maximum up to 3072GB RDIMM

Memory Type :

DDR4 2933/2666/2400 /2133 RDIMM

DDR4 2933/2666/2400 /2133 LRDIMM

DDR4 2933/2666/2400 /2133 LR-DIMM 3DS

DDR4 Intel® Optane™ DC Persistent Memory

Memory Size :

64GB, 32GB, 16GB RDIMM

128GB, 64GB, 32GB LRDIMM

128GB, 64GB LR-DIMM 3DS
扩展槽

Full-length/Full-height:

8 x PCI-E x16 (Gen3 x16 link), FH, FL

* Single root topology : 8 from CPU1

Dual root topology : 4 from CPU1, 4 from CPU2

Half-length/Low-profile:

Rear:

Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link),LP,HL

(1 from CPU1,1 from CPU2)

or

Single root topology: 1 X PCI-E x16 (Gen3 x16 link),LP,HL

(from CPU1)

Front:

1 x PCI-E x8 (Gen3 x8 link),LP,HL (from CPU2)
存储功能（视出货而定） SATA Controller :

Intel® PCH C621

8 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)

or

6 x SATA3 6Gb/s ports + 2 x NVMe drives + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260)

Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)

(Support Software RAID 0, 1, 5, 10 )

Intel®VROC (For Linux/Windows)

(Support Software RAID 0/1 )

Optional kits Controller :

ASUS PIKE II 3008 8-port SAS HBA card

ASUS PIKE II 3108 8-port SAS HW RAID card

12G SAS Support
硬盘位

8 x Hot-swap 2.5" Storage Bays

(Storage bay 1 & 2 support NVMe/SATA/SAS* drives, Storage bay 3~8 support SATA/SAS* drives. Storage bay location numbers are from top to bottom. *SAS from optional ASUS PIKE II 3108/3008 cards.)
网络(视出货而定)

1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
前置 I/O 接口

2 x USB 3.0 ports

2 x USB 2.0 ports

1 x VGA port

1 x COM por
背部 I/O 接口

2 x RJ-45 GbE LAN ports

1 x RJ-45 Mgmt LAN port
管理功能

ASUS Control Center Enterprise (Optional)

On-Board ASMB9-iKVM for KVM-over-IP
合规性认证

BSMI, CE, FCC(Class A)
外形尺寸

798mm x 439mm x 175.6mm

31.42" x 17.22" x 6.92"

4U
电源

2+1 Redundant 1600W 80PLUS Platinum Power Supply;

100-127 / 200-240Vac, 12.9 / 9.5A（for each

inlet）, 47-63Hz, Class I

2+1 Redundant 2200W 80PLUS Platinum Power Supply

Rating: 100-127/200-240 Vac, 12.9/9.5 A (for each inlet), 47-63 Hz, Class I

*2200W Power supply is only available for selected countries./p>

环境

Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃

Non operation humidity: 20% ~ 90% ( Non condensing)
